Product Introduction:

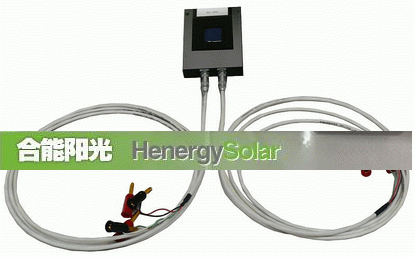

       The Solar Reference cell from Henergysolar is designed for calibrating the irradiance of the solar simulators used for testing solar cells or panels. They can also be used (with supporting equipment) to measure the temporal stability and/or non-uniformity of the light beam of solar simulators.

Product Feature:
■ Solar reference cell consists of a 20mm*20mm monocrystalline silicon photovoltaic cell
■ Encased in a rugged metal enclosure
■ Protective Quartz Window
■ Embedded Temperature Sensor (100 Ω Platinum Resistance Temperature Detector)
■ Certificate of calibration
■ Certified parameters: Isc, Imax, Voc, Vmax, Pmax, Area, Fill Factor (FF) and Efficiency.
■ Certification is traceable to National Renewable Energy Laboratory (NREL).
■ Compatible set of connecting cables with four 4-point measurements of both current and temperature.

Technical information:

■ Photovoltaic Material: Monocrystalline Silicon
■ Photovoltaic Device Dimensions: 20mm x 20mm
■ Calibration Irradiance: 1000 W/m2 (1 Sun)
■ Operating Current: Less than 175mA
■ Operating Temperature: 10OC to 30OC
■ Enclosure Material: Anodized Aluminum
■ Enclosure Dimensions: 89mm x 70mm x 19mm
■ Mounting Hole Pattern: 62mm x 62mm, Compatible with WPVS reference cell guidelines
